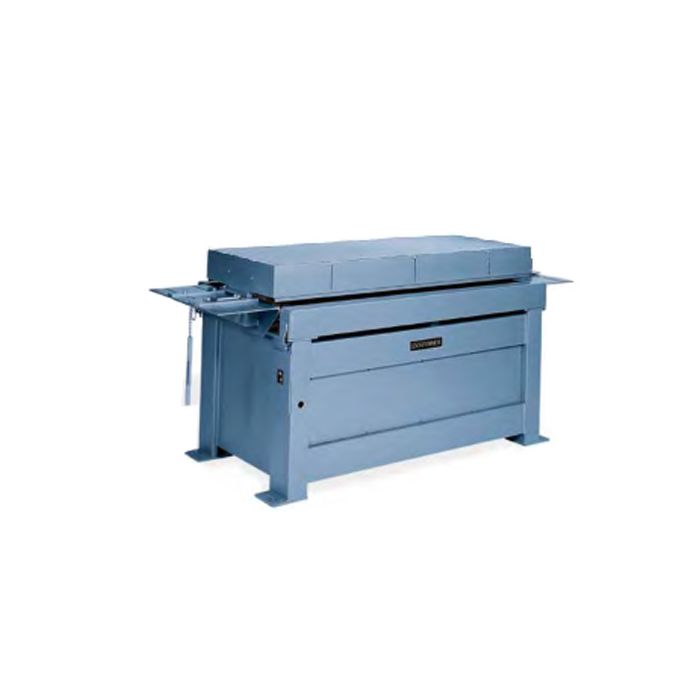

Lockformer Standing “S” Cleatformer
- Manufacturer:
- Lockformer
- Condition:
- NEW
- Machine Location:
- F.O.B Factory
In just one pass, form a shape that combines a conventional "S" cleat with a standing seam for greater strength and rigidity. This seam is adaptable in fabrication of large trunk or branch lines in industrial and commercial heating and ventilating ducts. Included are double-extended auxiliary shafts for a variety of choices for optional rollform tooling. The design integrity and quality construction of its 10-station configuration will provide years of trouble-free service.
- Capacity: 22-26 gauge
- Depth Of Pocket/Size: 1 1/8" pocket. Uses approximately 6 1/4" material stretch out inboard
- Others: Extended shafts for mounting auxiliary rolls
- Speed: 60 - 70 feet per minute
- Motor/Voltage: 5 H. P. 230/460 volts, 60 cycle, 3phase, A. C. 1,800 RPM
- Dimensions: Length - 84", Width - 30", Height - 37", Passline - 33"
- Weight: 1,700 lbs
