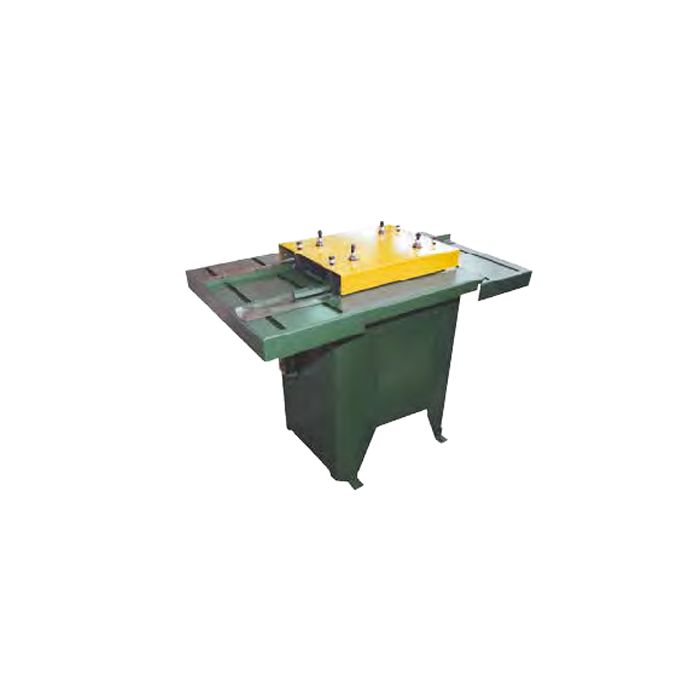

Engel 800-P-18 – 18 Gauge Pittsburgh Machine
- Manufacturer:
- Engel
- Condition:
- NEW
- Machine Location:
- F.O.B Factory
The Pittsburgh Lock revolutionized the HVAC Industry in the late 1930’s and is still used today for its strength and ease in assembling ductwork.
The HB-800 Series Pittsburgh rollforming machines have 5 forming stations with 2 forming positions. One inboard forming position forms the Pittsburgh lock and one auxiliary or outboard forming position has the capability of forming 1 of 3 different profiles. Versatile. Roll tooling can be changed out.
- Capacity: 18–22 gauge
- Depth Of Pocket/Size: 3/8" Uses approximately 1 1/8" of material
- Other: Width of hammer-over edge adjustable up to 3/8". Extended shafts for mounting auxiliary rolls.
- Speed: 40 - 45 feet per minute
- Motor/Voltage: 230/460 volts, 60 cycle, 3 phase, A. C. 1,800 RPM. Other motors available upon request
- Dimensions: Length - 58.5", Width - 24", Height - 41", Passline - 34"
- Weight: 750 lbs
