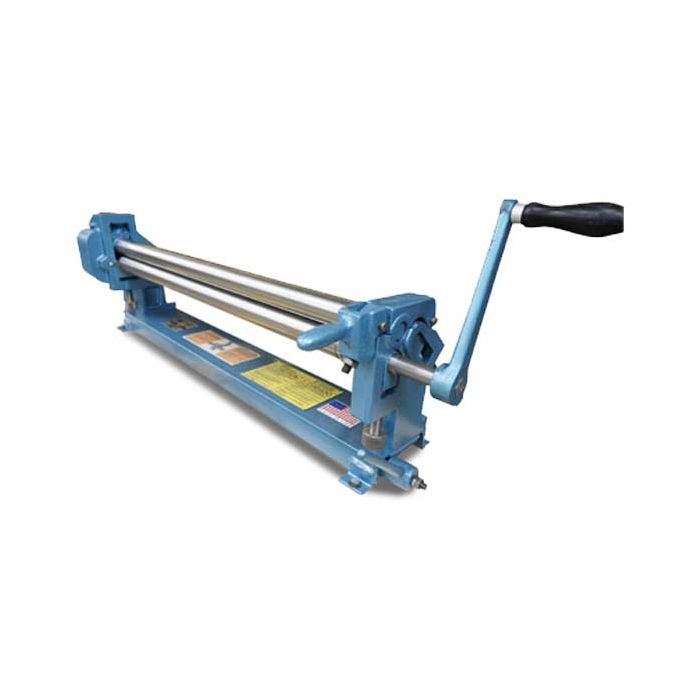

Roper Whitney 0381 Manual Slip Roller (42" x 2” Dia.)
- Manufacturer:
- Roper Whitney
- Condition:
- NEW
- Machine Location:
- F.O.B Factory
The No. 0381 manual roll has 2? precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16?, 1/4? and 5/16?. All rolls are standard wih fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 42? with a thickness capacity of 24 gauge mild steel.
- Maximum capacity, Mild Steel: 24 ga/ 0.61 mm
- Maximum forming length: 42 in/ 1066 mm
- Roll diameter: 2 in/ 50 mm
- Minimum forming radius: 1 in/ 25 mm
- Wiring grooves: 3/16, 1/4, 5/16/ 5, 6.5, 8 mm
- Dimensions: 61 x 11 x 15 in.
- Weight: 265 lbs
The No. 0381 manual roll has 2? precision turned and ground high carbon steel rollers. There are three wiring grooves 3/16?, 1/4? and 5/16?. All rolls are standard wih fully enclosed gear housings and all three rolls are driven. The upper roll lifts for conventional removal of the work piece. The maximum sheet length is 42? with a thickness capacity of 24 gauge mild steel.
- Maximum capacity, Mild Steel: 24 ga/ 0.61 mm
- Maximum forming length: 42 in/ 1066 mm
- Roll diameter: 2 in/ 50 mm
- Minimum forming radius: 1 in/ 25 mm
- Wiring grooves: 3/16, 1/4, 5/16/ 5, 6.5, 8 mm
- Dimensions: 61 x 11 x 15 in.
- Weight: 265 lbs
