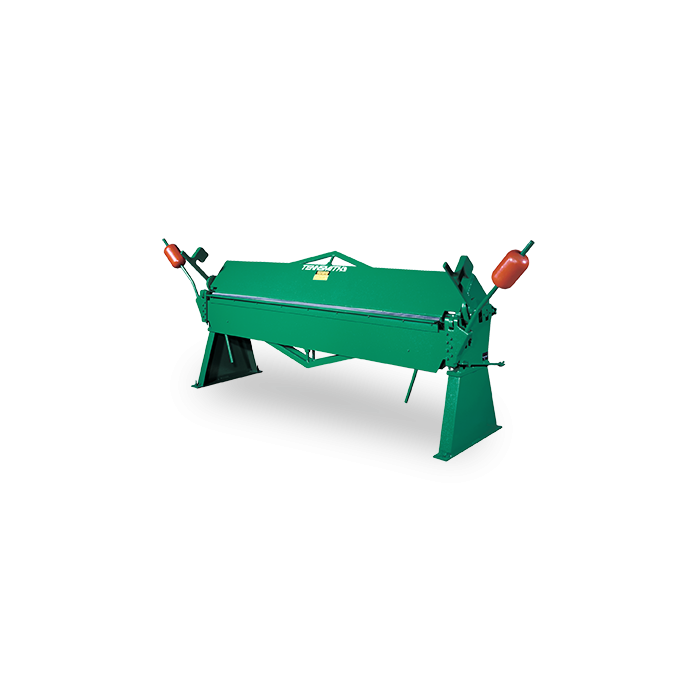

Tennsmith HB48-12 Hand Brake
- Manufacturer:
- Tennsmith
- Condition:
- NEW
- Machine Location:
- F.O.B Factory
TENNSMITH's heavy-duty hand brakes are designed and built for long service and accurate bending.
Welded steel plate construction and heavy truss rods and braces provide strength and durability. With much more substantial steel side plates than other domestically made units, these brakes have the rigidity required for upper beam adjustment without the use of wrenches.
Equipped with thrust bearings, the upper leaf adjustment screws permit quick, accurate alignment for different material thicknesses or radii.
Other adjustment features include:
•Leveling screws and lock nuts on the pedestals
•Jack screws and tensioner bolts on the apron
•Truss rods on the apron, base and upper beam
•Fully adjustable counter balances to facilitate the bending process
•Replaceable nose bar and apron inserts
Capacity, mild steel - 12 gauge/2.7 mm
Bending length - 49 in./1245 mm
Maximum Iift of beam - 1-7/8 in./47 mm
Minimum reverse bend - 1/4 in./6 mm
Minimum flange in capacity material - 1 in./25 mm
Dimensions, counterweights in place, LxWxH - 72 x 36 x 53 in. 1829 x 915 x 1346 mm
Shipping weight - 1100 lbs./500 kg
- Leveling screws and lock nuts on the pedestals
- Jack screws and tensioner bolts on the apron
- Truss rods on the apron, base and upper beam
- Fully adjustable counter balances to facilitate the bending process
- Replaceable nose bar and apron inserts
