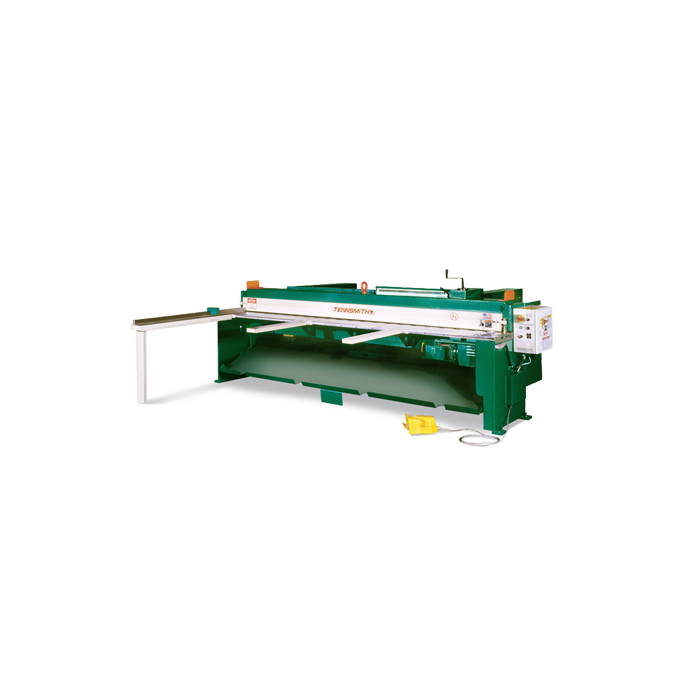

The MSE Series come standard with four-edge, high carbon, high chrome blades, a self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, dual inch/metric inlaid bed scales and non-metallic gibs. The MSE Series also incorporates the unique front oper... The MSE Series come standard with four-edge, high carbon, high chrome blades, a self-leveling hold down bar with neoprene insert, single, continuous and jog stroke cycles, motor reverse switch, precision-machined table, dual inch/metric inlaid bed scales and non-metallic gibs. The MSE Series also incorporates the unique front operated 2x-F back gauge system. This system allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle. Capacities of the shears are 16-gauge mild steel, 22-gauge stainless with 73 or 121 cutting lengths and speeds of 40 strokes per minute.

Manufacturer:: Tennsmith
Condition:: NEW
Machine Location:: F.O.B Factory

The MSE Series also incorporates the unique front operated 2x-F back gauge system. This system allows the operator to move the backstop from 0 to 30 inches in approximately 2 seconds with only two rotations of the handle.

Capacities of the shears are 16-gauge mild steel, 22-gauge stainless with 73 or 121 cutting lengths and speeds of 40 strokes per minute.

Maximum shearing capacity, mild steel - 16 gauge / 1.6 mm

Maximum shearing capacity, stainless steel - 20 gauge/1.0 mm

Maximum cutting length - 73 in. / 1854 mm

Back gauge range - 30 in. / 762 mm

Strokes per minute, 40 full length

Motor - 3 hp, 230/460v, 3-phase, 60Hz

Number of holddowns - Solid Bar

Floor space, gauges in position - 92 x 69 x 50 in. 2337 x 1753 x 1270 mm

Shipping weight - 2,300 lbs. / 1046 kg
