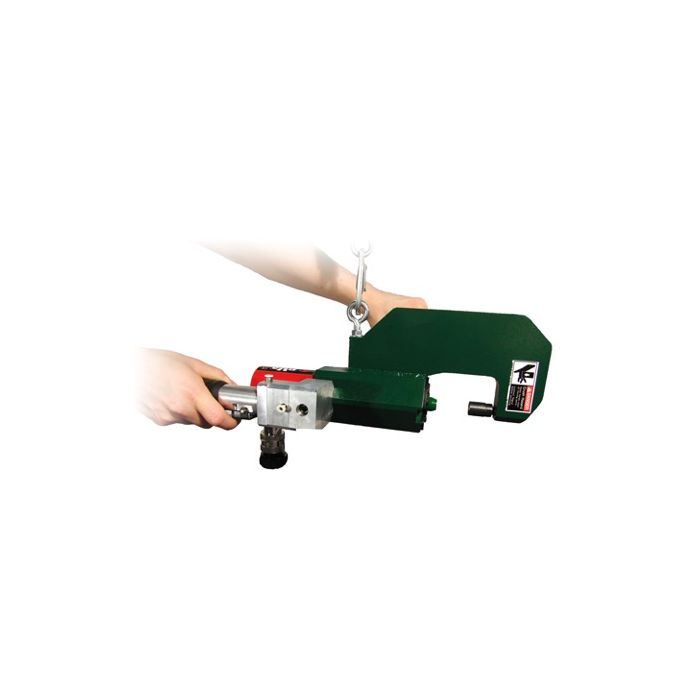

Norlok Medium Duty Watson
The medium duty Watson from Norlok offers all the benefits of clinching in a portable light-weight machine. This compact clinching machine is easy to handle and use as it only requires shop air to operate.
- Manufacturer:
- Norlok Technology
- Condition:
- NEW
- Machine Location:
- F.O.B Factory
The medium duty Watson from Norlok offers all the benefits of clinching in a portable light-weight machine. This compact clinching machine is easy to handle and use as it only requires shop air to operate.
- Press Design: Single steel “C” frame
- Stroke: 1-½” (up to 1-¾”)
- Throat: 2”
- Upper Tooling: Fast change punch Replaceable punch stripper
- Lower Tooling: MDWA insert style Adjustable to suit material thickness
- Medium Duty Capacity: (0.18ӯ PUNCH)
- Capacity MAX: Two ply 0.075” mild steel
- Capacity MIN: Two ply 0.010” mild steel
- Cycle speed: 20 CPM (standard speed mode) 20-30 CPM (with modified stroke)
- Air Requirements: 70 psi (min) 125 psi (max) 100 psi (recommended) Approx. 0.8 cu ft free air per cycle (5 HP @ 40 clinches per minute)
- Intensifier Width: 16”
- Dimensions: Length 16”, Height 18”, Weight 47 lbs
- Weight (Hand tool only): 16 lbs (Hand tool only)
- Lightweight for great portability
- Safety stroke for greater operator safety
- Simple tool adjustments for little or not setup time
- Close tooling access to get in close for more applications
- Can fasten up to 2-ply 14 gauge material.
- Air powered hydraulic booster
- Easy maintenance for less down time
- Competitively priced for low investment and fast payback
- Fully customizable designs to fit your needs
- Trigger operation
- Air over oil intensifier included
- Single shot pressure sensing return
- Can be operated in any position
