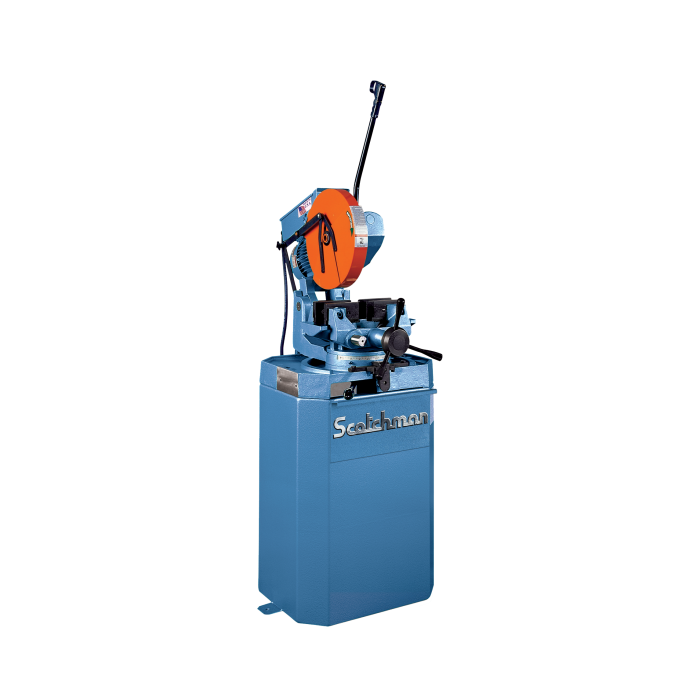

Scotchman CPO 350 Cold Saw
Scotchman CPO 350 PK Cold Saw
- Cutting Speeds: Must Specify when Ordering
- LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe: LT (Low Turn): 22 rpm / 44 rpm - Motor rate: 3 HP
- HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material: HT (High Turn): 44 rpm / 88 rpm - Motor rate: 2.5 HP
- VS (Variable Speed) ~ wired 230/460, 3-ph: VS (Variable Speed): 11 / 177 rpm - Motor rate: 5 HP
- VS (Variable Speed) ~ wired 220, 1-ph: VS (Variable Speed) ~ 11 / 177 rpm - Motor rate: 5 HP
- SS (Single Speed) designed for 220v 1 ph applications: SS (Single Speed); 44 rpm - Motor rate: 3 HP
- 90 Degree Tubing: 90 Deg
- 90 Degree Round: 4-1/2" (114 mm)
- 90 Degree Square: 4-1/4" x 4-1/4" (108 x 108 mm)
- 90 Degree Rectangle: 5-1/2" x 4" (140 x 102 mm)
- 45 Degree Tubing: 45 Degree
- 45 Degree Round: 4" (102 mm)
- 45 Degree Square: 3-3/4" x 3-3/4" (96 x 96 mm)
- 45 Degree Rectangle: 3-3/4" x 3-3/4" (96 x 96 mm)
- 90 Degree Solid: 90 Degree
- Factory Wired: Specify 208 3 ph, 230 3 ph, 460 3 ph, 575 volt, 3 ph 60 hz, 220 1-ph 60 Hz (SS Model only)
- Maximum Diameter Blade: 14"
- Arbor Bore: 1-9/16"
- Pin Spacing: 4/12/1964
- Width: 21-7/8"
- Depth: 43-1/2"
- Height not including handle: 56-1/4"
- Height from floor to vise: 37-7/16"
- Shipping Weight: 660 lbs
- Manual Double Self-Centering Vise Assures Burr-Free Cuts
- Operator Controlled Trigger Switch
- Miter Capabilities 45 degrees Left and 45 degrees Right
- Miter Locking Device: Quick, Accurate Setting-Stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right
- Capable of Slotting
- Two Cutting Speeds (LT 22/44 rpm Or HT 44/88 rpm)
- Double Reduction, Hardened and Ground Worm and Wheel Gear Box
- Worm Wheel of Top Quality Bronze
- Chip Drawer
- 7 Gallon Coolant Tank with Pump
- One 12-1/2" Diameter (315 mm) HSS Blade
- One Blade Wrench
- One Gallon Concentrated Coolant
- 230 or 460 Volt/3 Phase Electrics (must specify voltage)
- Warranty three Years on Parts
- Made in USA
Scotchman CPO 350 PK Cold Saw
- Cutting Speeds: Must Specify when Ordering
- LT(Low Turn) designed for solid mild steel, solid stainless steel & thick wall pipe: LT (Low Turn): 22 rpm / 44 rpm - Motor rate: 3 HP
- HT(High Turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material: HT (High Turn): 44 rpm / 88 rpm - Motor rate: 2.5 HP
- VS (Variable Speed) ~ wired 230/460, 3-ph: VS (Variable Speed): 11 / 177 rpm - Motor rate: 5 HP
- VS (Variable Speed) ~ wired 220, 1-ph: VS (Variable Speed) ~ 11 / 177 rpm - Motor rate: 5 HP
- SS (Single Speed) designed for 220v 1 ph applications: SS (Single Speed); 44 rpm - Motor rate: 3 HP
- 90 Degree Tubing: 90 Deg
- 90 Degree Round: 4-1/2" (114 mm)
- 90 Degree Square: 4-1/4" x 4-1/4" (108 x 108 mm)
- 90 Degree Rectangle: 5-1/2" x 4" (140 x 102 mm)
- 45 Degree Tubing: 45 Degree
- 45 Degree Round: 4" (102 mm)
- 45 Degree Square: 3-3/4" x 3-3/4" (96 x 96 mm)
- 45 Degree Rectangle: 3-3/4" x 3-3/4" (96 x 96 mm)
- 90 Degree Solid: 90 Degree
- Factory Wired: Specify 208 3 ph, 230 3 ph, 460 3 ph, 575 volt, 3 ph 60 hz, 220 1-ph 60 Hz (SS Model only)
- Maximum Diameter Blade: 14"
- Arbor Bore: 1-9/16"
- Pin Spacing: 4/12/1964
- Width: 21-7/8"
- Depth: 43-1/2"
- Height not including handle: 56-1/4"
- Height from floor to vise: 37-7/16"
- Shipping Weight: 660 lbs
- Manual Double Self-Centering Vise Assures Burr-Free Cuts
- Operator Controlled Trigger Switch
- Miter Capabilities 45 degrees Left and 45 degrees Right
- Miter Locking Device: Quick, Accurate Setting-Stops at 45 Degrees Left, Straight 90 Degrees, and 45 Degrees Right
- Capable of Slotting
- Two Cutting Speeds (LT 22/44 rpm Or HT 44/88 rpm)
- Double Reduction, Hardened and Ground Worm and Wheel Gear Box
- Worm Wheel of Top Quality Bronze
- Chip Drawer
- 7 Gallon Coolant Tank with Pump
- One 12-1/2" Diameter (315 mm) HSS Blade
- One Blade Wrench
- One Gallon Concentrated Coolant
- 230 or 460 Volt/3 Phase Electrics (must specify voltage)
- Warranty three Years on Parts
- Made in USA
